Profile size

Features:

1.With dual function of emergency switch & magnetic door
2.Low consumption chip design
3.Low voltage fault monitoring reports
4.2262/1527 IC,oscillation resistance optional
5.anti-tamper function.
6.Widely used at door & window for home or business with burglar alarm system

Technical parameter
Voltage: 23A-12V battery
Under voltage monitoring:7.5V+/-0.5V
Static current ≤10uA
Triggering distance:25-35mm
Emission current≤15mA
Emission distance≥120m (open area)
Emission frequency:315MHz,443 MHz
Operating temperature:-10°C ~+50°C

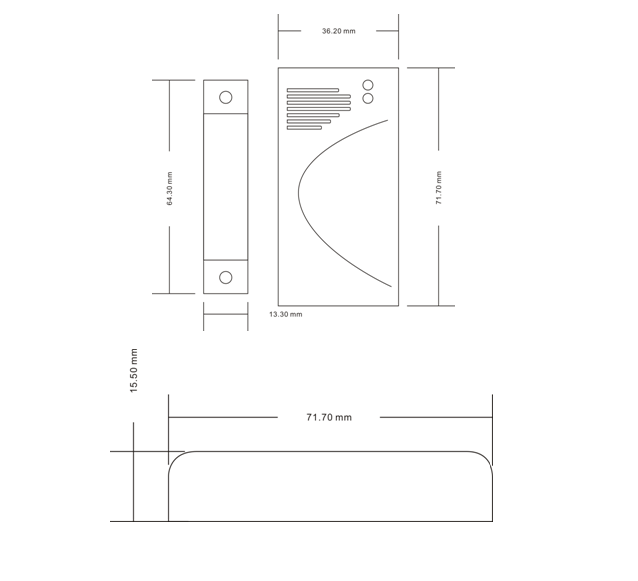

Dimension: L65*W38*H16mm

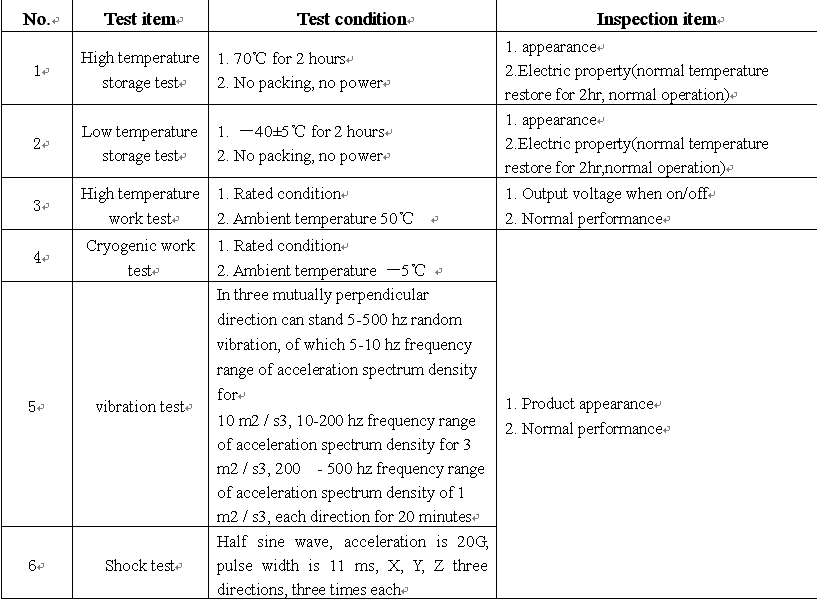

Environmental Condition
